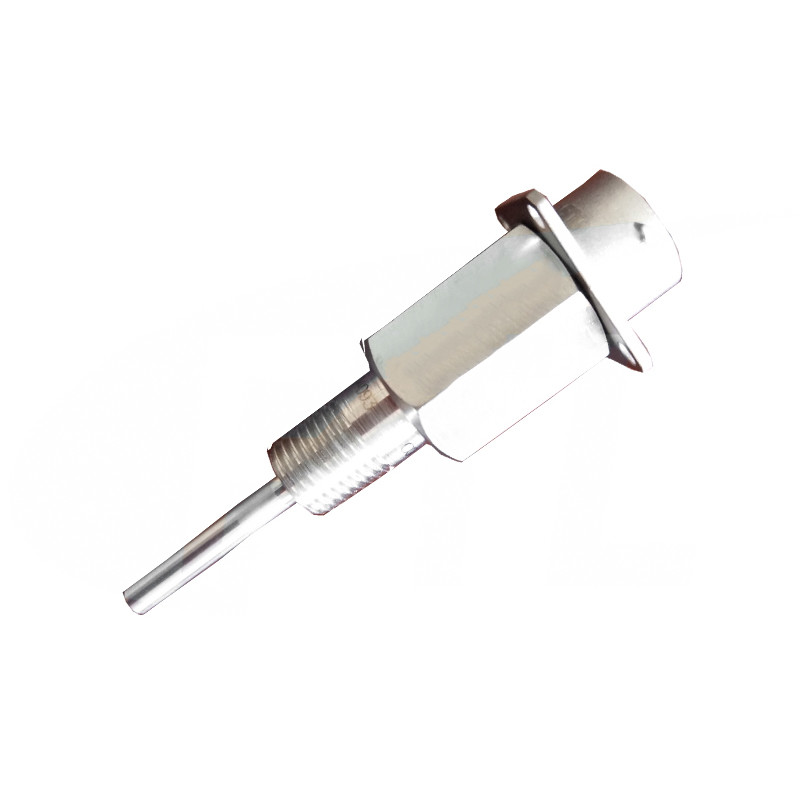

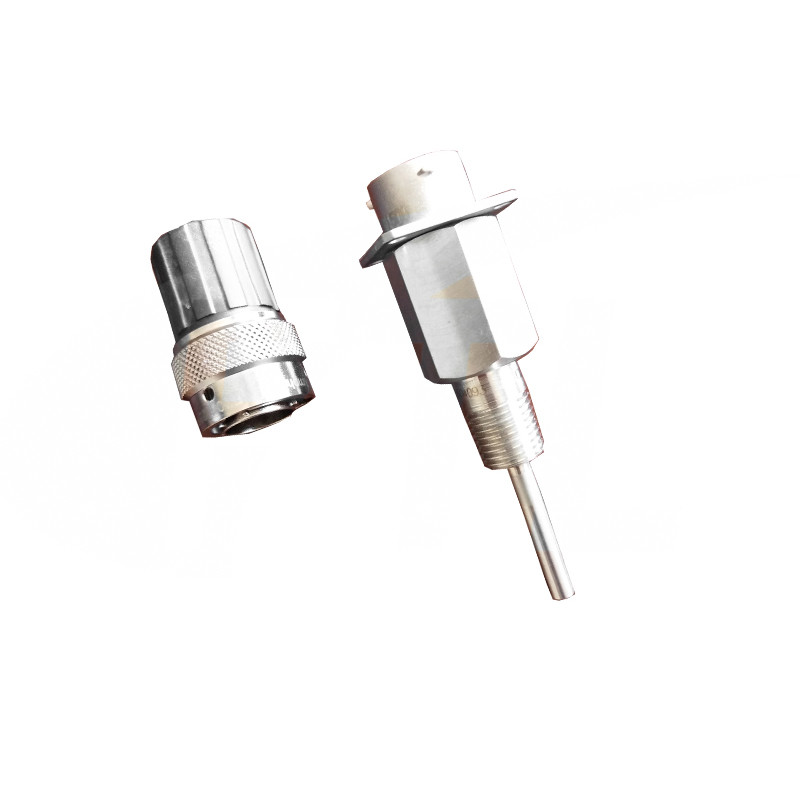

Locomotive Instrumentation Part HT-1000 Temperature Transmitter

  • Locomotive Instrumentation Part HT-1000 Temperature Transmitter
  • Locomotive Instrumentation Part HT-1000 Temperature Transmitter
Place of Origin China
Marca HTR
Model Number HT-1000
Minimum Order Quantity 10pcs
Prezzo Negoziabile
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contattatemi per campioni e buoni.

CosaAPP:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Accuracy 0.5% Measurement Range -50°C to +150°C
Output 4–20mA DC, linear with temperature, two-wire transmission Power Supply Voltage 7.5–30VDC, nominal 24VDC
Temperature Drift 0.02% FS/°C Load Capacity 0–600Ω
Operating Temperature -50°C to +150°C Relative Humidity 5–95%, non-condensing
Stability Output change ≤ 1% within 12 months
Evidenziare

Locomotive Instrumentation Part

,

HT-1000 Temperature Transmitter

,

Locomotive Instrumentation Part Temperature Transmitter
Lasciate un messaggio
Descrizione di prodotto

Products Description

The HT-1000 Temperature Transmitter consists of a resistance temperature detector (RTD) and a transmitter circuit module. It adopts a two-wire system, meaning a single pair of  wires serves both as the power supply and signal transmission line. Equipped with a non- linear correction circuit, the HT1000 can measure temperatures ranging from -50°C to +150 °C in various industrial media.It converts the temperature signal into a linear 4–20mA DC current output, which can be transmitted to display units, controllers, recorders, or DCS  systems for centralized monitoring and control.

The HT-1000 is widely used in the rail transit industry and can be integrated with analog  gauges, digital displays, recorders, regulators, and DCS systems to form comprehensive  temperature measurement and control systems.


Specification

Item

Specification

Accuracy

0.5% (including linearity, hysteresis, and repeatability)

Measurement Range

-50°C to +150°C

Output

4–20mA DC, linear with temperature, two-wire transmission

Power Supply Voltage

7.5–30VDC, nominal 24VDC

Temperature Drift

0.02% FS/°C (due to ambient temperature variation)

Load Capacity

0–600Ω (with 24VDC power supply)

Operating Temperature

-50°C to +150°C (high-temperature version)

Relative Humidity

5–95%, non-condensing

Stability

Output change ≤ 1% within 12 months
