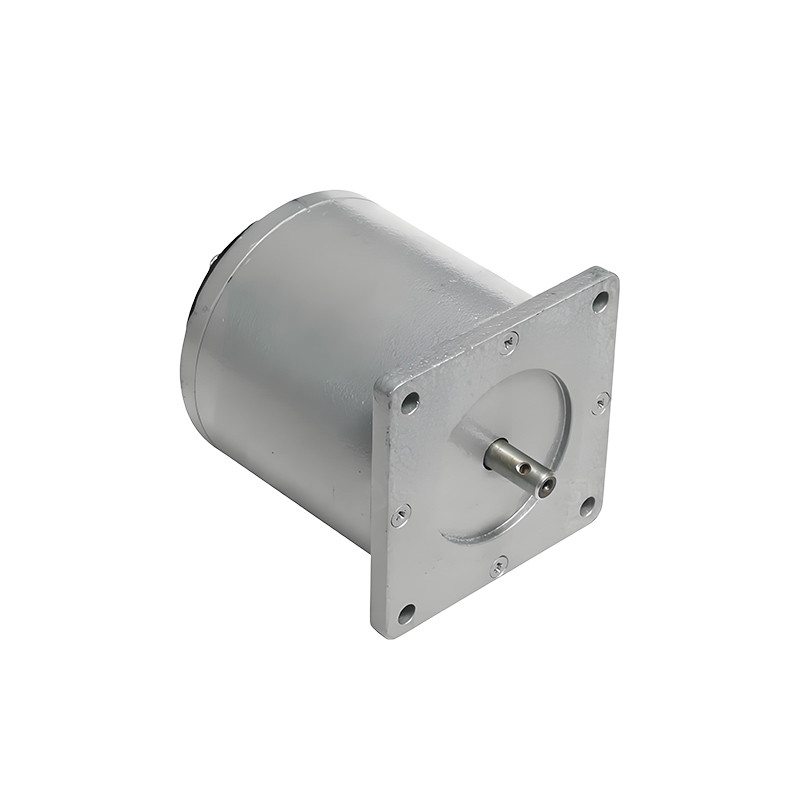

Railway Vehicle Diesel Locomotives HTS-1 and HTS-1A Rotational Speed Sensors

  • Railway Vehicle Diesel Locomotives HTS-1 and HTS-1A Rotational Speed Sensors
  • Railway Vehicle Diesel Locomotives HTS-1 and HTS-1A Rotational Speed Sensors
Place of Origin China
Marca HTR
Model Number HTS-1 and HTS-1A
Minimum Order Quantity 10pcs
Prezzo Negoziabile
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Contattatemi per campioni e buoni.

CosaAPP:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Output Voltage AC30V ±0.5V at 5000 r/min Measurement Range 300–5000 r/min
Output Waveform Approximately sinusoidal Three-phase  Voltage Balance ≥ 93%
Insulation Resistance > 20 MΩ Dielectric Strength 1000V/S
Weight Approx. 0.5 kg Operating Temperature -20°C to +60°C
Relative Humidity < 85%
Evidenziare

HTS-1 Rotational Speed Sensors

,

HTS-1A Rotational Speed Sensors

,

Railway Vehicle Rotational Speed Sensors
Lasciate un messaggio
Descrizione di prodotto

Products Description

The HTS-1 Speed Sensor is a widely used device on diesel locomotives. During operation, it connects to the target shaft via a coupling. As the locomotive's diesel engine drives the  sensor to rotate, it generates a three-phase AC voltage signal with a specific frequency. This signal is used by various systems such as the locomotive’s electronic tachometer, dynamic braking system, and monitoring devices. The HTS-1 sensor is known for its compact design, sleek appearance, and reliable, safe, and convenient operation.


Specification

Item

Specification

Output Voltage

AC30V ±0.5V at 5000 r/min
(voltage between any two terminals is proportional to speed)

Measurement Range

300–5000 r/min

Output Waveform

Approximately sinusoidal

Three-phase
 Voltage Balance

≥ 93%

Insulation Resistance

> 20 MΩ

Dielectric Strength

1000V/S

Weight

Approx. 0.5 kg

Operating Temperature

-20°C to +60°C

Relative Humidity

< 85%

Operating Mode

Continuous

Connection Method

Two terminals for output;
no phase sequence required, can be connected arbitrarily

Railway Vehicle Diesel Locomotives HTS-1 and HTS-1A Rotational Speed Sensors 0
