High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks

  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
  • High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks
Luogo di origine Cina
Marca HTR
Quantità di ordine minimo 1000
Prezzo Ngotiable
Imballaggi particolari Imballaggio per l'esportazione
Tempi di consegna Negoziabile
Termini di pagamento L/C,T/T
Capacità di alimentazione 50000 pezzi al mese

Contattatemi per campioni e buoni.

CosaAPP:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Nome del prodotto Isolante ferroviario Materiale Nylon(PA6, PA66, PA66+GF30%)
Caratteristica Alta resistenza meccanica Standard Secondo le esigenze del cliente
Colore Costume Funzione Isolamento
Evidenziare

nylon rail insulators for railway

,

railway track nylon insulators

,

railway parts nylon insulators
Lasciate un messaggio
Descrizione di prodotto

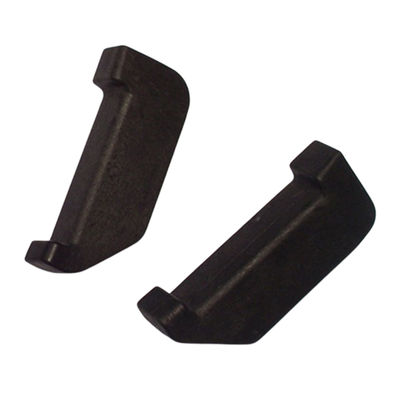

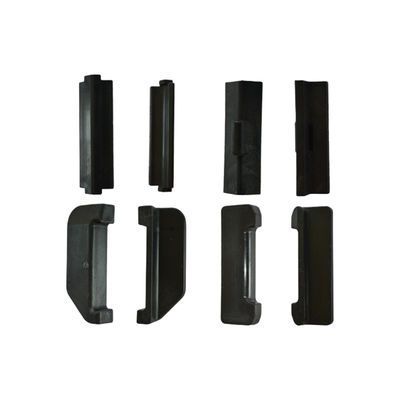

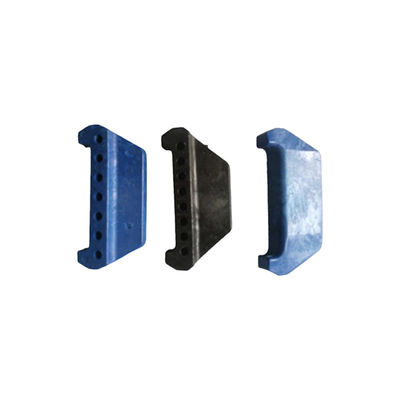

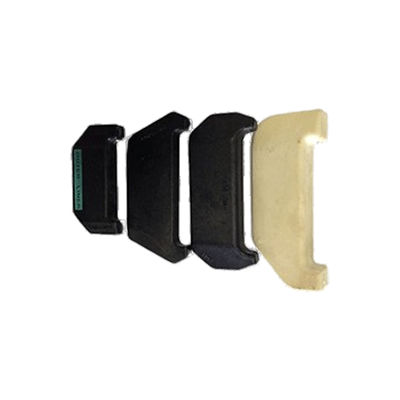

Railway Parts & Accessories Nylon Rail Insulators
Rail insulator, also called railroad insulator, rail insulation, or rail nylon insulator, is installed between steel rail and tie plate. It serves dual purposes of adjusting rail gauge and electrically insulating railroad rails, rail clips, and rail bolts from the interior of concrete sleepers. While functionally similar to rail pads, these insulators are thicker and essential for high-speed or high-load train operations.
Product Features
  • High-Quality Materials: Manufactured from premium nylon materials to ensure exceptional strength and durability, capable of withstanding harsh railway environments for extended service life and reduced maintenance costs.
  • Precision Engineering: Advanced manufacturing techniques guarantee consistent dimensions and perfect fit, crucial for track stability and safety, while facilitating easier installation and replacement.
  • Corrosion Resistance: Nylon construction provides inherent corrosion resistance suitable for diverse weather conditions, with optional coatings available for enhanced protection against rust and degradation.
Technical Specifications
Material PA6, PA66, PA66+GF30%
Density g/cm³ 1.3-1.45
Tensile Strength MPa ≥170
Elongation A 0.044
Bending Strength MPa ≥250
Impact Strength (No gap) KJ/m² ≥80
Melting Point ℃ 250 - 270
Insulation Resistance Ω ≥1×10⁸
Glass Fiber Content % 30-35
Hardness HRR ≥110
High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks 0 High Mechanical Strength Corrosion Resistant Precision Engineered Rail Nylon Insulator for Railway Tracks 1
