1435MM Mechanical Digital Track Gauge

  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
Luogo di origine Cina
Marca HTR
Quantità di ordine minimo 1000
Prezzo Ngotiable
Imballaggi particolari Packaging di esportazione
Tempi di consegna Ngotiable
Termini di pagamento L/c, t/t
Capacità di alimentazione 50000 pezzi al mese

Contattatemi per campioni e buoni.

CosaAPP:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Nome prodotto Calibro di binario digitale Pista 1384-1470mm
Controllare il manometro 1364-1450mm Distanza back-to-back 1344-1430mm
Spazio della flangia 20-107 mm Non posso. -200-+200mm
Schermata di visualizzazione OLED Tensione di potenza DC3.4V ~ 5.2V (batteria ricaricabile)
Intervallo di temperatura di lavoro -30 ℃～+55 ℃ Prestazioni di isolamento ＞ 1MΩ
Peso ≤3 kg
Evidenziare

1435mm mechanical track gauge

,

digital railway track gauge

,

railway track gauge with warranty
Lasciate un messaggio
Descrizione di prodotto

Product Description
The T type digital track gauge is mainly used to measuring the track gauge ,cant, check rail gauge , back to back distance and flangeway clearance. The device is easy to operate ,and its measuring speed is very fast , which can be used either day or night. It is an ideal measurement tool for the railway engineers.

Product Performance Feature

Our digital track gauge is a high-precision railway inspection tool ,which developed according to the current railway situation of all weather, complex railway line , large temperature difference etc., It is composed of electronic and mechanical parts, the electronic part is integrated by microelectronic technology, single-chip technology, sensing technology, signal processing technology and other high-tech .This product has the following features:
· Stable performance and anti-electromagnetic interference: suitable for electrification, non-electrification, automatic block or other block section.
· Fast measurement speed: When used, the measured data can be displayed without additional manual operation after the measuring point is confirmed.
· High measuring accuracy: Precision transmission device with intelligent data processing system, it can be fast calibration. The built-in temperature compensation eliminates the material thermal expansion and cold contraction on the track gauge and super elevation measurement data, which improved the measurement accuracy.
· Large OLED display: the new light-emitting OLED material is adopted. Even in strong sunlight, the
measurements are still clear and intuitive. The characteristics of the instrument are particularly prominent when it is used at night or in tunnels.
· Wide temperature range: -30℃ ~ +55℃ ,it can meet the temperature requirements in most areas.
· Quick calibration operation: simple measurement process.
· Power saving function: no operation within 15 minutes, the system will automatically shut down.
· Large capacity battery: long standby time
· Insulated design
· Waterproof: could use in rainy day

Product Performance

Reference Value

Scope of Use

1435mm standard gauge railway with operating speed ≤ 250 km/h

Track Gauge

1384-1470mm

Measurement Uncertainty

±0.25mm

Check Rail Gauge

1364-1450mm

Back-to-back Distance

1344-1430mm

Flangeway Clearance

20-107mm

Cant

-200-+200mm

Measurement Uncertainty

±0.45mm

Display Screen

OLED

Power Voltage

DC3.4V～5.2V(Rechargeable Battery)

Working Temperature Range

-30℃～+55℃

Insulation Performance

＞1MΩ

Weight

≤3kg

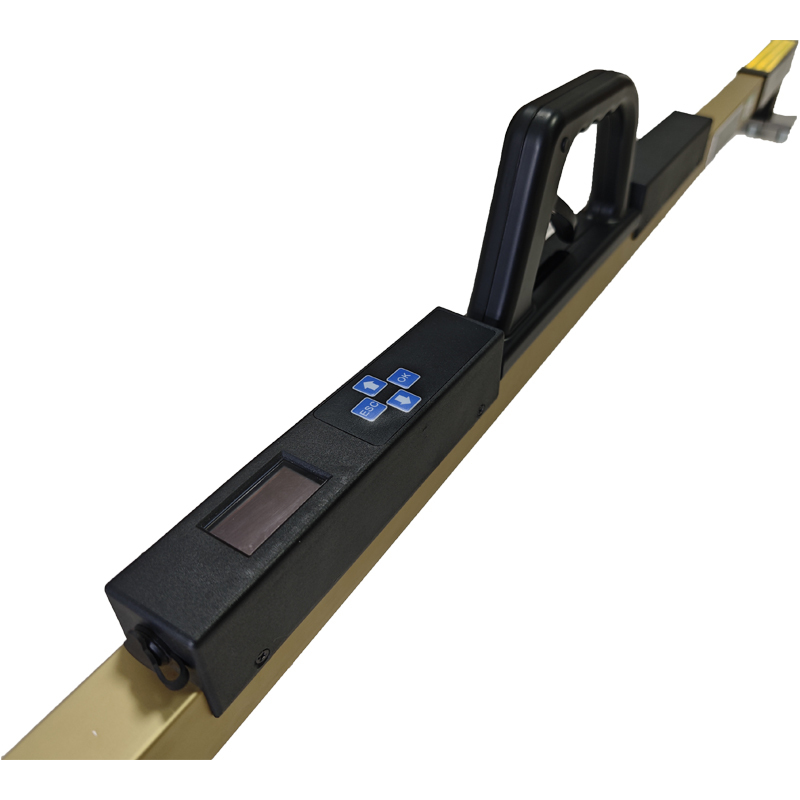

1435MM Mechanical Digital Track Gauge 0

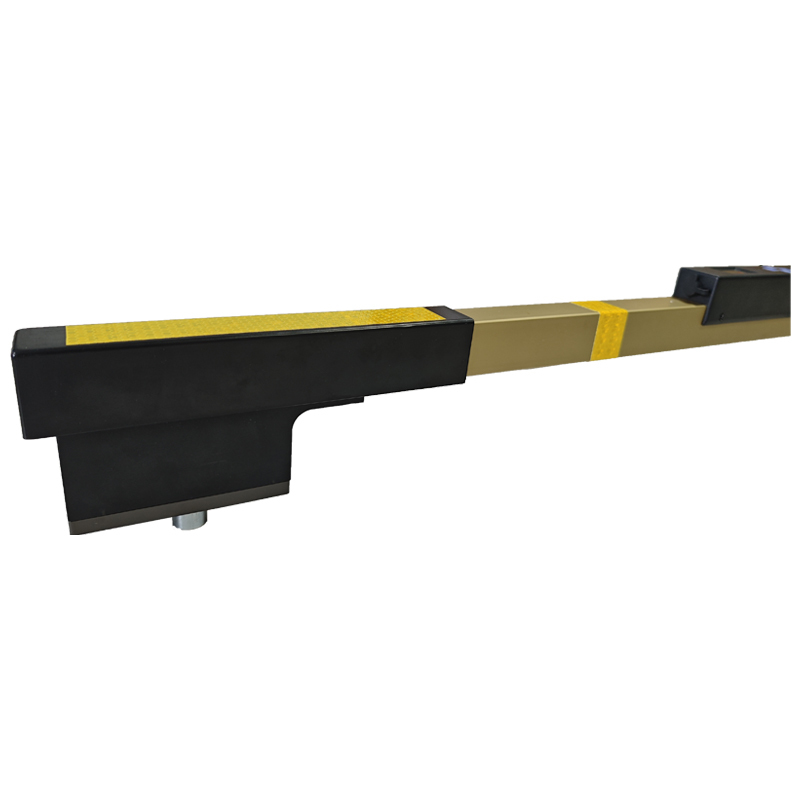

1435MM Mechanical Digital Track Gauge 1

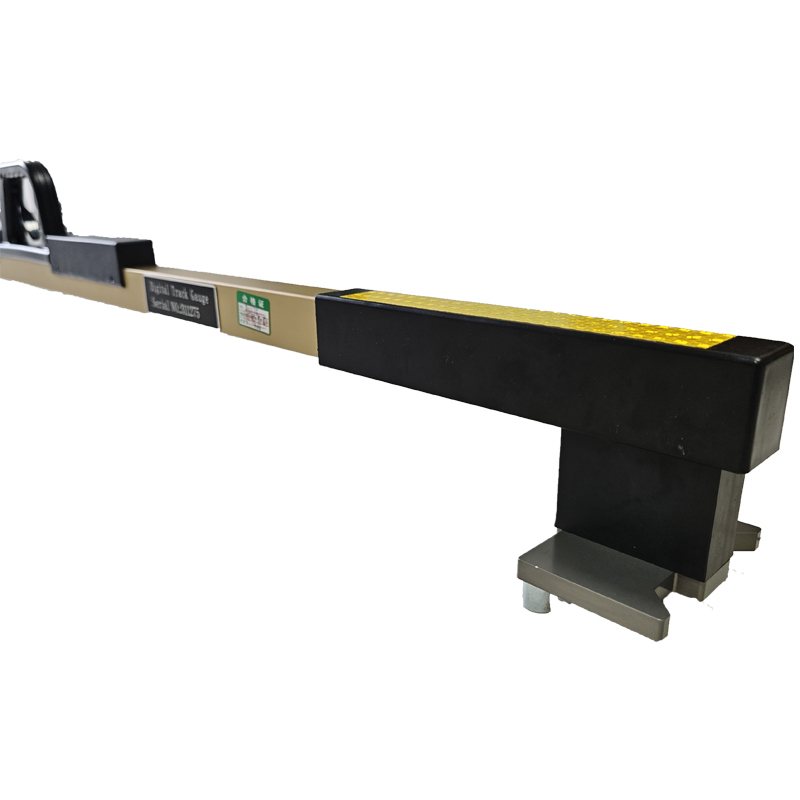

1435MM Mechanical Digital Track Gauge 2

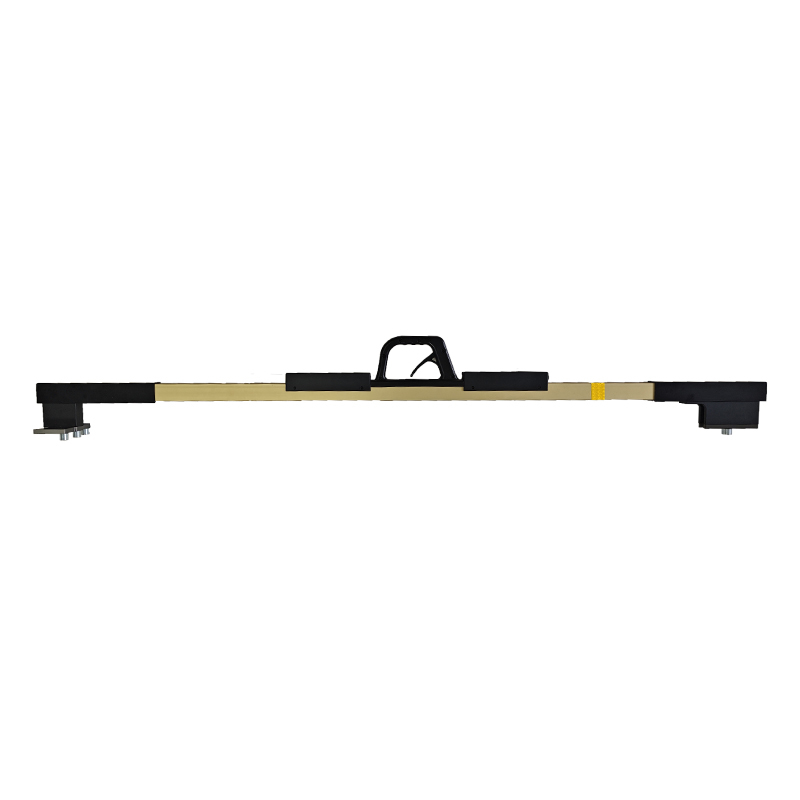

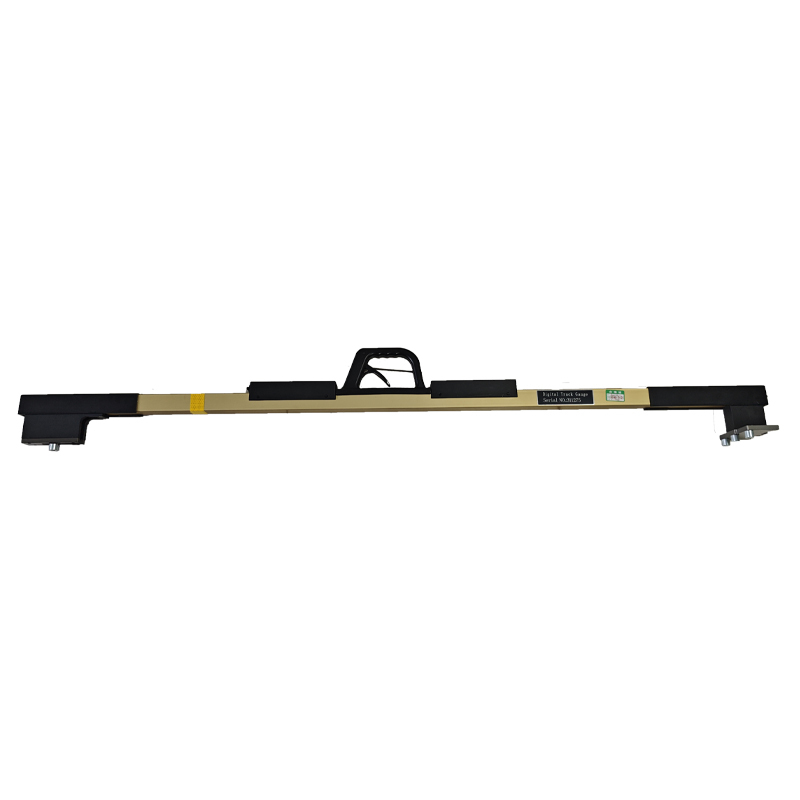

1435MM Mechanical Digital Track Gauge 3
