Railway Vehicle Part Tram End of Car System Passageway Flexible Gangway

  • Railway Vehicle Part Tram End of Car System Passageway Flexible Gangway
  • Railway Vehicle Part Tram End of Car System Passageway Flexible Gangway
  • Railway Vehicle Part Tram End of Car System Passageway Flexible Gangway
Place of Origin China
Marca HTR
Certificazione IRIS
Quantità di ordine minimo 1pc
Prezzo Negoziabile
Imballaggi particolari scatola di cartone, custodia di legno /a seconda delle esigenze
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability 10,000 pcs/month

Contattatemi per campioni e buoni.

CosaAPP:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome del prodotto Corridoio del tram Waterproofing Leak-proof, Compliant with IEC61133
Support Method Self-supporting Fire Protection EN45545/BS6853/DIN5510 (optional)
Application Tram
Lasciate un messaggio
Descrizione di prodotto

Product Description

Product Introduction

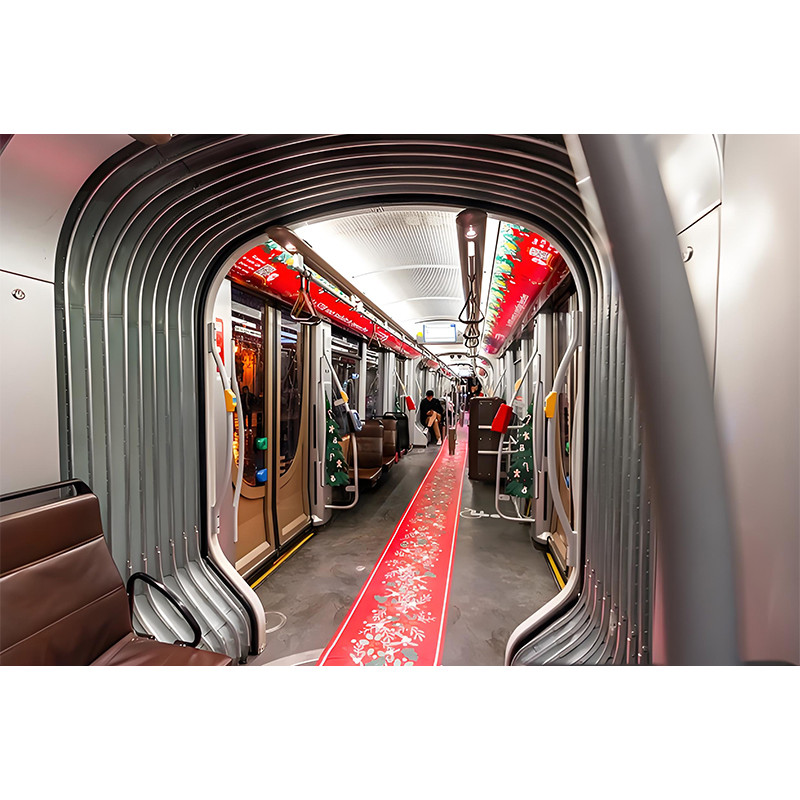

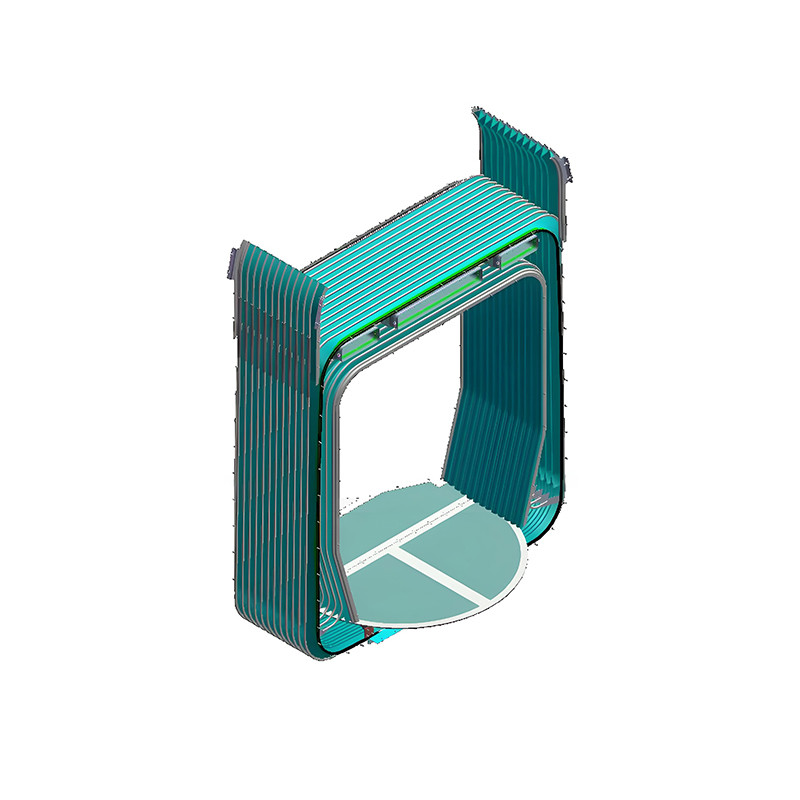

The tram passageway is an important component that connects the different carriages of a tram, including internal and external folding roofs, footboards, top side guard panels, and connecting mechanisms.

Product Features
*Connecting carriages: Achieves the physical connection between the different carriages of the tram, forming a complete whole and ensuring the stability and reliability of the vehicle's operation.
*Facilitating passenger passage: Provides a safe and convenient passage for passengers to move between carriages, helping passengers find seats and disperse the flow of passengers. *Adapting to train movement: Can adapt to the various motion states of the tram during its operation, such as turning, climbing slopes, and crossing curves, ensuring that the connection between carriages remains unaffected, while also providing passengers with a smooth passage environment.
*Sealing and protection: Has good sealing performance to prevent rain, dust, wind, and sand from entering the carriage, while also acting as soundproofing and heat insulation, improving passenger comfort during travel.

Specification
Product Performance
Reference Values
Vehicle Type
Tram
Negotiating Curve Capability
Circular curve radius 50m, S-curve R50-20-50m
Gap Width
≥800mm
Clear Height
≥2050mm
Distance Between Both Ends of the Cabin
Customizable as required
Fire Protection
EN45545/BS6853/DIN5510 (optional)
Sound Insulation
≥35dB(A)
Thermal Insulation
K≤4.0W/(m·K)
Waterproof
Leakage-proof, compliant with IEC 61133

Railway Vehicle Part Tram End of Car System Passageway Flexible Gangway 0
